Hybrid Stepper
Motor Family

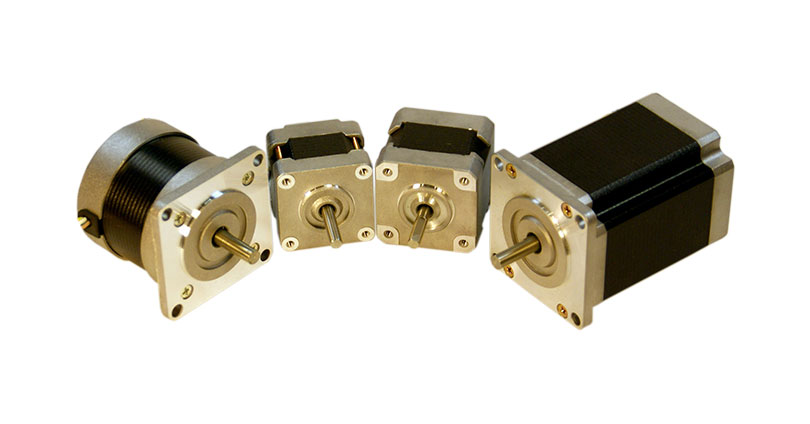

HURST® hybrid stepper motors offer many advantages over conventional
stepper motor designs. With the 1.8° step angle, quality resolution
can be achieved without external reduction.
Rapid start, stop and reversal characteristics coupled with open
loop operation make the Hybrid Stepper the motor of choice for many
applications. This design provides high torque density which is
desirable when space is a factor. The hybrid models are available in
NEMA standard frame sizes of 17 and 23, with holding torque ranging
up to 187 oz-in. Standard windings are 4 phase, unipolar. All models
offer class B insulation.
- 3.2-12 Vdc Motor
- NEMA 17 Mounting
- Up to 25 oz-in holding torque
- 1.8 deg. step angle, 200 steps/rev.
- 4-phase unipolar or 2-phase bipolar
- 3.2-12 Vdc Motor
- NEMA 17 Mounting
- Up to 44.5 oz-in holding torque
- 1.8 deg. step angle, 200 steps/rev.
- 4-phase unipolar or 2-phase bipolar
- 2.8-12 Vdc Motor
- NEMA 23 Mounting
- Up to 83.4 oz-in holding torque
- 1.8 deg. step angle, 200 steps/rev.
- 4-phase unipolar or 2-phase bipolar
- 1.3-8.5 Vdc Motor
- NEMA 23 Mounting
- Up to 187.6 oz-in holding torque
- 1.8 deg. step angle, 200 steps/rev.
- 4-phase unipolar or 2-phase bipolar
