Permanent Magnet DC Stepper Motor Family
Series 42mm Direct Drive
Permanent Magnet DC Stepper LSD42 Direct Drive Specifications:
| Frame Size: | 42mm |
| Step Angle: | 7.5° |
| Steps per Revolution: | 48 |
| Detent Torque: | 1.8 oz-in [12.7 mN-m] |
| Position Accuracy: | +/- 5% max. |
| Number of Phases: | 4 phase bifilar |
| Insulation Class: | Class A (105°C) |
| Insulation Resistance: | 100 MΩ at 500Vdc |
| Dielectric Strength: | 600 Vac/second |
| Lead Wire: | 6 leads 28AWG (approx. 9 inches [228.6 mm]) |
| Operation Ambient Temp: | -10°C to +40°C (approx.) |
| Temperature Rise: | 60°C max |
| Note: Typical data subject to change without notification | |

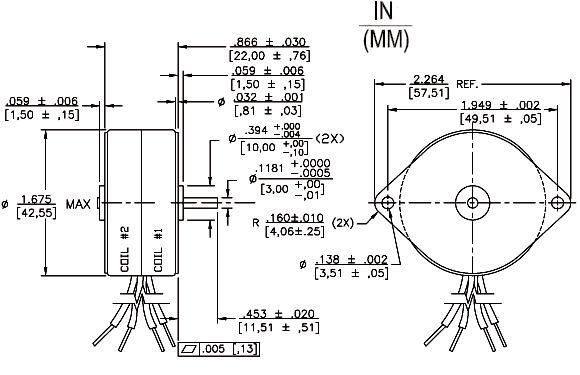

LSD42 Direct Drive Drawings:
 |
LSD42 Direct Drive Diagrams:
 |
 |
|
Add to Cart |
Model |
Part Number |
Rated Torque @ 175 p/s (oz-in) |
Rated Torque @ 175 p/s (mN-m) |
Holding Torque 2 Phase Energized (oz-in) |
Holding Torque 2 Phase Energized (mN-m) |
Typical Output Speed (RPM) |
Nominal Voltage (Vdc) |
Input Power (watts) |
Rotor Inertia (gm-cm2) |
Rotor Inertia (oz-in2) |
Winding Res. (ohms) |
Rated Ind. (mH) |
Weight (oz) |
Weight (grams) |
| LSD42 | LSD42005D | 3.6 | 25.4 | 8 | 56.5 | 300 | 5 | 5.5 | 7.2 | .0394 | 9 | 5.8 | 4.8 | 136 | |
| LSD42 | LSD42006D | 3.6 | 25.4 | 8 | 56.5 | 300 | 6 | 6 | 7.2 | .0394 | 12 | 9.5 | 4.8 | 136 | |
| LSD42 | LSD42012D | 3.6 | 25.4 | 8 | 56.5 | 300 | 12 | 5.8 | 7.2 | .0394 | 50 | 33 | 4.8 | 136 | |
| LSD42 | LSD42024D | 3.6 | 25.4 | 8 | 56.5 | 300 | 24 | 6.1 | 7.2 | .0394 | 190 | 215 | 4.8 | 136 |
