Permanent Magnet DC Stepper Motor Family
Series 55mm Direct Drive
Permanent Magnet DC Stepper LSD55 Direct Drive Specifications:
| Frame Size: | 55mm |
| Step Angle: | 7.5° |
| Position Accuracy: | +/- 5% max. |
| Number of Phases: | 4 phase bifilar |
| Insulation Class: | Class A (105°C) |
| Lead Wire: | 6 leads 24AWG (approx. 9 inches [228.6 mm]) |
| Operation Ambient Temp: | -10°C to +40°C (approx.) |
| Temperature Rise: | 60°C max |
| Note: Typical data subject to change without notification | |

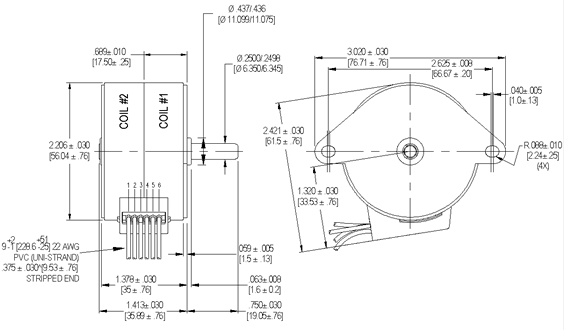

LSD55 Direct Drive Drawings:
 |

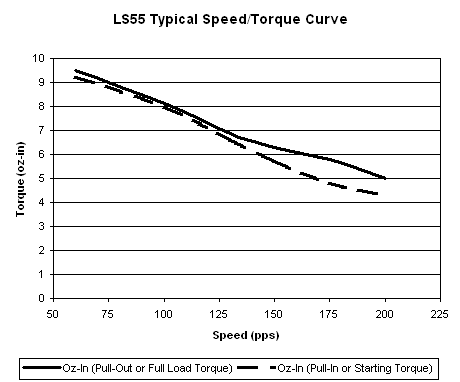

LSD55 Direct Drive Diagrams:
 |
 |
|
Add to Cart |
Model |
Part Number |
Minimum Holding Torque (oz-in) |
Minimum Holding Torque (mN-m) |
Voltage (Vdc) |
Holding Current (amps) |
Input Power (watts) |
Res. (ohms) |
Ind. (mH) |
Rotor Inertia (oz-in2) |
Rotor Inertia (gm-cm2) |
Weight (oz) |
Weight (grams) |
| LSD55 | LSD55T005D | 16.5 | 116.5 | 5 | 1.8 | 9 | 5.6 | 6.7 | .34 | 62 | 11.5 | 326 | |
| LSD55 | LSD55T006D | 16.5 | 116.5 | 6 | 1.5 | 9 | 8 | 9.5 | .34 | 62 | 11.5 | 326 | |
| LSD55 | LSD55T012D | 16.5 | 116.5 | 12 | .708 | 9 | 32 | 33 | .34 | 62 | 11.5 | 326 | |
| LSD55 | LSD55T024D | 16.5 | 116.5 | 24 | .375 | 9 | 128 | 145 | .34 | 62 | 11.5 | 326 |
