Permanent Magnet AC Synchronous Motor Family
Series 55mm Direct Drive
Permanent Magnet AC Synchronous LYD55 Direct Drive Specifications:
Frame Size: 55mm
Output Speed: 250/300 RPM
Standard Voltages: 115/230 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearings: Sleeve bearings
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification

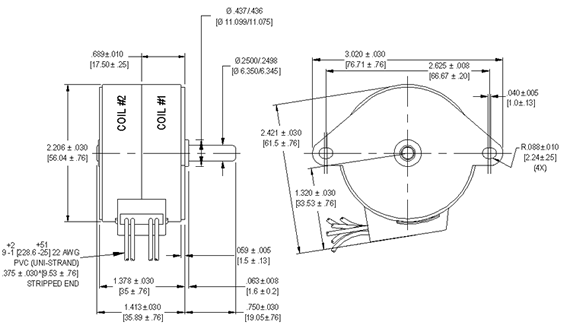

LYD55 Direct Drive Drawings:
LYD55 Direct Drive Diagrams:
LYD55 Direct Drive Model Table:
Add
to
Cart		 Model Part
Number
Torque
(oz-in)
Torque
(mN-m)		 Voltage
(Vac)
(50/60 Hz)		 Output
Speed
(RPM)
(50/60 Hz)		 Input
Power
(watts)		 Res.
(ohms)		 Capacitor
Value
(mFd)
(50/60 Hz)		 Weight
(oz)		 Weight
(grams)
Contact
Factory
 LYD55 LYD55T024DL 6.5 468 24 250/300 5 75 15/12 11.5 326
LYD55 LYD55T115DL 6.5 468 115 250/300 5 1530 .62/.5 11.5 326
LYD55 LYD55T230DL 6.5 468 220/230/240 250/300 5 5997 .15/.12 11.5 326
LYD55 LYD55T024DS 8.5 612 24 250/300 7 63 20/15 11.5 326
LYD55 LYD55T115DS 8.5 612 115 250/300 7 1265 .85/.68 11.5 326
LYD55 LYD55T230DS 8.5 612 220/230/240 250/300 7 4960 .22/.18 11.5 326
