LYG35 35mm Geared Permanent Magnet AC Synchronous Motors

EMERSON.COM CAREERS


Click to Enlarge

Purchase Now!
(U.S. payments only)

Permanent Magnet AC Synchronous Motor Family

Series 35mm Geared

Printer Friendly Version

Permanent Magnet AC Synchronous LYG35 Geared Specifications:

Frame Size:	35mm
Output Speed:	.3 to 300 RPM
Standard Voltages:	115 Vac & 24 Vac 50/60 Hz
Insulation Class:	Class A (105°C)
Lead Wire:	4 leads 28AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Gear Unit:	Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearings:	Sleeve bearings
Recognition:	E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation. Capacitor supplied with 115 Vac motors.
Note: Typical data subject to change without notification

LYG35 Geared Drawings:

Pear-Shaped Gear Mounting

Round-Shaped Gear Mounting With Sleeve Bearing

Round-Shaped Gear Mounting With Ball Bearing
NOTE: If ball bearings are desired please contact factory.

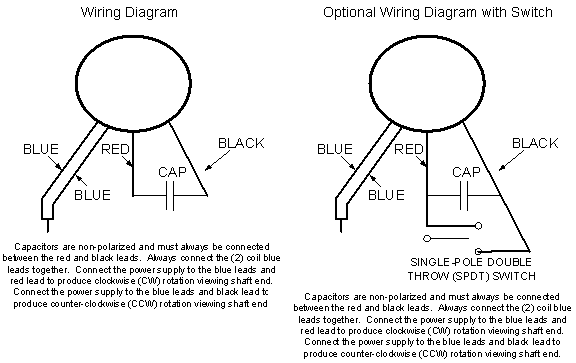

LYG35 Geared Diagrams:

LYG35 Geared Model Table:

Add to cart	Part Number	Minimum Holding Torque (oz-in)	Minimum Holding Torque (mN-m)	Reduction	Voltage (Vac) 50/60 Hz	Output Speed (RPM) 60 Hz	Output Speed (RPM) 50 Hz	Input Power (watts)	Capacitor Value (mfd) 50/60 Hz	Winding Res. (ohms)	Ind. (mH/ph)	Length (L, in)	Length (L, mm)	Weight (oz)	Weight (g)
	LYG35115E02P	3	21.2	1 2/3	115	180	150	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E04P	3	21.2	2	115	150	125	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E06P	3	21.2	2 1/2	115	144	120	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E08P	4	28.2	2 1/2	115	120	100	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E10P	5	35.3	3	115	100	83.3	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E12P	5	35.3	3 1/3	115	90	75	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E16P	6	42.4	4	115	75	62.5	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E18P	7	49.4	4 1/6	115	72	60	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E20P	8	56.5	5	115	60	50	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E22P	10	70.6	6 1/4	115	48	40	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E24P	12	84.7	7 1/2	115	40	33.3	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E28P	13	91.8	8 1/3	115	36	30	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E30P	16	113	10	115	30	25	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E34P	19	134.2	12	115	25	20.83	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E36P	20	141.2	12 1/2	115	24	20	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E38P	21	148.3	13 1/3	115	22.5	18.75	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E40P	24	169.5	15	115	20	16.67	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115ER70¹	88	621.4	60	115	5	4.17	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115FR52¹	44	310.7	30	115	10	8.33	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115FR40¹	24	169.5	15	115	20	16.67	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115FR30¹	16	113	10	115	30	25	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E44P	27	190.7	16 2/3	115	18	15	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F46P	29	204.8	20	115	15	12.5	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F48P	31	218.9	20 5/6	115	14.4	12	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F50P	37	261.3	25	115	12	10	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F52P	44	310.7	30	115	10	8.3	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F54P	46	324.8	31 1/4	115	9.6	8	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F56P	49	346	33 1/3	115	9	7.5	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F58P	55	388.4	37 1/2	115	8	6.67	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F60P	59	416.6	40	115	7.5	6.25	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F62P	61	430.8	41 2/3	115	7.2	6	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F64P	74	522.6	50	115	6	5	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F66P	79	557.9	54	115	5.6	4.67	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F68P	83	586.1	56 1/4	115	5.3	4.42	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F70P	88	621.4	60	115	5	4.17	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F72P	92	649.7	62 1/2	115	4.8	4	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F74P	98	692	66 2/3	115	4.5	3.75	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F76P	110	776.8	75	115	4	3.33	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F78P	118	833.3	80	115	3.8	3.17	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F80P	123	868.6	83 1/3	115	3.6	3	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E82P	120	847.4	100	115	3	2.5	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E84P	135	953.3	112 1/2	115	2.7	2.25	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E86P	144	1016.9	120	115	2.5	2.083	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E88P	150	1059.2	125	115	2.4	2	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E90P	150	1059.2	150	115	2	1.67	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E96P	150	1059.2	250	115	1.2	1	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115E98P	150	1059.2	300	115	1	.83	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35115F99P	150	1059.2	900	115	.33	.28	2.5	.25	6115	5.4	1.55	39.4	9.2	260.8
	LYG35024F99P²	150	1059.2	900	24	.33	.28	2.5	4	316	.368	1.55	39.4	9.2	260.8

Notes:
¹Round-Shaped Gear Housing construction with sleeve bearings.
²Capacitor not supplied with motor.
