Permanent Magnet AC Synchronous Motor Family
Series PA, PB Direct Drive
Permanent Magnet AC Synchronous PA, PB Direct Drive Specifications:
Output Speed: 250 to 600 RPM
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 8.5 inches [215.9 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Recognition: E53578(N), Component-Impedance  Protected Motors,
115Vac Standard Rotor
Certification: Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, Standard Rotor, 7.5 watts max. PA, 10 watts max. PB
Capacitors are required for operation. Capacitors supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
Additional Information:
Reversible permanent magnet synchronous motors series PA and PB direct drive motors at 60Hz have a rotor speed of 300 RPM and 600 RPM respectively. Both motors are available with Hi-Torque rotors.

Note:
  • Capacitors are required and must be used in the circuit even if the motor is applied in a unidirectional mode.
  • Capacitors are furnished with 115V motors.

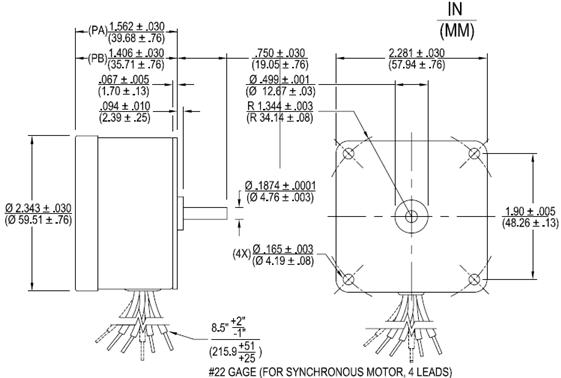

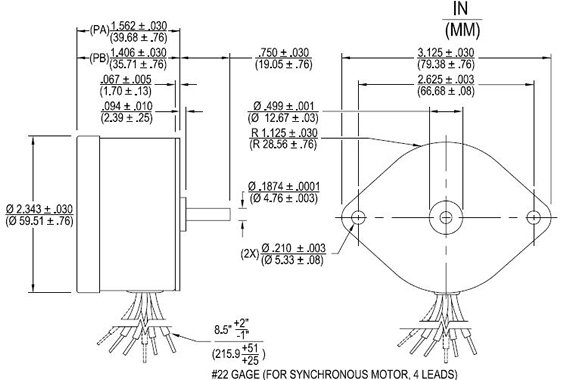

    • PA, PB Direct Drive Drawings:
    PA, PB Direct Drive Diagrams:
    PA, PB Direct Drive Model Table:
    Add
    to
    Cart         		Model Part
    Number         		Mounting
    Type    		 Rated
    Torque
    (oz-in)         		Rated
    Torque
    (mN-m)         		Output
    Speed
    (RPM)    		 Input
    Power
    (watts)         		Voltage
    (Vac)
    50Hz    		 Voltage
    (Vac)
    60Hz         		Full
    Load
    Temp
    Rise
    (degC)         		Capacitor
    Value
    (mfd)         		Weight
    (oz)         		Weight
    (grams)
    		PA 3201-0031 Square 8.5 60 250 6 220 -- 31 .18 13 368.5
    Contact Factory
    		PA 3228-0031 Square 12.25 86.5 250 11 220 -- 42 .22 13 368.5
    Contact Factory
    		PA 3228-004 Square 12.25 86.5 250 11 115 -- 42 .85 13 368.5
    		PA 3201-001 Square 8.5 60 300 7.5 -- 115 31 .68 13 368.5
    		PA 3201-0041 Square 8.5 60 300 7.5 -- 24 31 15 13 368.5
    Contact Factory
    		PA 3228-0012 Square 11 77.7 300 9.5 -- 115 42 .85 13 368.5
    		PB 3203-0061 Square 6.6 46.6 500 10 240 -- 44 .22 13 368.5
    		PB 3203-0071 Square 6.6 46.6 500 10 230 -- 44 .25 13 368.5
    		PB 3203-001 Square 5.5 38.8 600 10 -- 115 44 .82 13 368.5
    		PB 3230-0012 Square 7.5 53 600 11 -- 115 45 1 13 368.5
    		PA 3201-0061 Diamond 8.5 60 300 7.5 -- 115 31 .68 13 368.5





























    Notes:
    1 Capacitor not supplied with motor.
    2 Hi-Torque Rotor Construction.
