Permanent Magnet AC Synchronous Motor Family

Series T, TA Geared

Printer Friendly Version

Permanent Magnet AC Synchronous T, TA Geared Specifications:

Torque Range:	Up to 250 oz-in [1765 mN-m]
Output Speed:	.25 to 300 RPM
Poles:	T Series 24 poles; TA Series 20 poles
Insulation Class:	Class A (105°C)
Lead Wire:	4 leads 22AWG (approx. 12 inches [304.8 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Gear Unit:	Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearing:	Sleeve Bearing
Recognition:	E53578(N), Component-Impedance Protected Motors, 115Vac Standard Rotor
Certification:	Card No. 42576, Motors and Generators, 115 Vac, 60 Hz, Standard Rotor, 7 watts max.
Note: Typical data subject to change without notification

Addtional Information:

Reversible, permanent magnet synchronous series T geared motors are available in a wide range of speeds. The gear trains are the most rugged with a maximum recommended loading of 250 ounce inches at 1 RPM. All gears are hobbed to AGMA 7 quality. Pinions are extruded from a special steel with a modified long addendum tooth form to provide higher strength. Pinions are held to the same AGMA 7 quality level as the gears. Both pinion and gear teeth are case hardened for wear resistance and rotate upon hardened and ground steel studs.

Standard motors are 115V, 60Hz but other voltages may be specified. Sleeve bearings are standard. Capacitors are required for operation and must be used in the circuit even if the motor is used in a unidirectional mode.

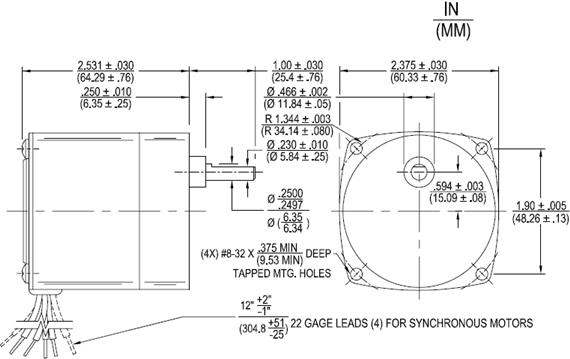

T, TA Geared Drawings:

T, TA Geared Diagrams:

T, TA Geared Model Table:

Add to Cart	Model	Part Number	Grainger SKU	Reduction	Voltage (Vac) 50 Hz	Voltage (Vac) 60 Hz	Rated Torque (oz-in)	Rated Torque (mN-m)	Output Speed (RPM)	Input Power (watts)	Capacitor Value (mfd)	Weight (oz)	Weight (g)
	T	2602-039		1200	--	115	250	1765.4	.25	7	.68	27	765.4
	T	2602-034		600	--	115	250	1765.4	.5	7	.68	27	765.4
	T	2602-001	6Z131	300	--	115	250	1765.4	1	7	.68	27	765.4
	T	2602-055¹		250	220	--	250	1765.4	1	6	.18	27	765.4
	T	2602-002		200	--	115	240	1694.8	1.5	7	.68	27	765.4
	T	2602-004	6A185	150	--	115	233	1645.3	2	7	.68	27	765.4
	T	2602-020		125	115	--	233	1645.3	2	6	.68	27	765.4
	T	2602-053¹		125	230	--	233	1645.3	2	6	.18	27	765.4
	T	2602-074¹		150	--	230	233	1645.3	2	7	.18	27	765.4
	T	2602-090¹		125	220	--	233	1645.3	2	6	.18	27	765.4
	T	2602-084¹		100	220	--	228	1610	2.5	6	.18	27	765.4
	T	2602-005		100	--	115	224	1581.8	3	7	.68	27	765.4
	T	2602-012	6Z132	75	--	115	218	1539.4	4	7	.68	27	765.4
	T	2602-046¹		75	--	220	218	1539.4	4	7	.18	27	765.4
	T	2602-056¹		240	220	--	218	1539.4	4	6	.18	27	765.4
	T	2602-076¹		75	--	230	218	1539.4	4	7	.18	27	765.4
	T	2602-079¹		62.5	230	--	218	1539.4	4	6	.18	27	765.4
	T	2602-093¹		75	--	24	218	1539.4	4	7	15	27	765.4
	T	2602-017		60	--	115	215	1518.2	5	7	.68	27	765.4
	T	2602-013	6A186	50	--	115	210	1482.9	6	7	.68	27	765.4
	T	2602-043¹		50	--	220	210	1482.9	6	7	.18	27	765.4
	T	2602-048¹		41.67	220	--	210	1482.9	6	6	.18	27	765.4
	T	2602-073¹		50	--	240	210	1482.9	6	7	.15	27	765.4
	T	2602-091¹		50	--	24	210	1482.9	6	7	15	27	765.4
	T	2602-006	6Z133	30	--	115	180	1271.1	10	7	.68	27	765.4
	T	2602-047¹		25	220	--	149	1052.2	10	6	.18	27	765.4
	T	2602-057¹		30	--	220	180	1271.1	10	7	.68	27	765.4
	T	2602-037		25	--	115	149	1052.2	12	7	.68	27	765.4
	T	2602-007		20	--	115	120	847.4	15	7	.68	27	765.4
	T	2602-026		16.67	115	--	99	699.1	15	6	.18	27	765.4
	T	2602-072¹		16.67	220	--	99	699.1	15	6	.15	27	765.4
	T	2602-092¹		20	--	240	120	847.4	15	7	.68	27	765.4
	T	2602-082		16.67	--	115	99	699.1	18	7	.68	27	765.4
	T	2602-040		15	--	115	96	677.9	20	7	.68	27	765.4
	T	2602-008		12	--	115	77	543.7	25	7	.68	27	765.4
	T	2602-014	6Z134	10	--	115	64	451.9	30	7	.68	27	765.4
	T	2602-029		8.33	115	--	53	374.3	30	6	.18	27	765.4
	T	2602-045¹		8.33	220	--	53	374.3	30	6	.18	27	765.4
	T	2602-049¹		8.5	230	--	53	374.3	30	6	15	27	765.4
	T	2602-083¹		10	--	24	64	451.9	30	7	.85	27	765.4
	T	2611-005		10	--	115	79	557.9	30	9.5	.68	27	765.4
	T	2602-009	6Z135	5	--	115	32	226	60	7	.68	27	765.4
	T	2602-030		.06	115	--	26	183.6	60	6	.18	27	765.4
	T	2602-044¹		4.17	220	--	26	183.6	60	6	.18	27	765.4
	T	2602-070¹		5	--	220	32	226	60	7	.85	27	765.4
	T	2611-007		5	--	115	39.5	278.9	60	9.5	.68	27	765.4
	T	2602-081		4.17	--	115	26.5	187.1	72	7	.68	27	765.4
	T	2602-010		3	--	115	19	134.2	100	7	.68	27	765.4
	T	2602-015	6A187	2.5	--	115	16	113	120	7	.68	27	765.4
	T	2602-032		4.06	115	--	13	91.8	120	6	.68	27	765.4
	T	2602-042¹		2.5	230	--	13	91.8	120	6	.18	27	765.4
	T	2602-059¹		2.08	220	--	13	91.8	120	6	.18	27	765.4
	T	2611-010		2.5	--	115	19.75	139.5	120	9.5	.85	27	765.4
	T	2611-019¹		2.5	220	--	18	127.1	120	10	.22	27	765.4
	T	2602-011		2	--	115	13	91.8	150	7	.68	27	765.4
	T	2602-071¹		12	--	24	77	543.7	25	7	15	27	765.4
	T	2602-080¹		10	230	--	64	451.9	25	6	.18	27	765.4
	T	2602-086¹		10	220	--	64	451.9	25	6	.18	27	765.4
	T	2602-089¹		2.5	220	--	15.5	109.5	100	6	.18	27	765.4

Notes:
¹ Capacitor not supplied with motor.
