Permanent Magnet DC Stepper Motor Family
Series TS Direct Drive
Permanent Magnet DC Stepper TS Direct Drive Specifications:
Step Angle: 7.5°
Steps per Revolution 48
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Lead Wire: 6 leads 24AWG (approx. 12 inches [304.8 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Note:  Typical data subject to change without notification
Additional Information:
Compact, rugged, and efficient TS series 7.5° stepping motors are designed for heavy-duty applications. The motor is made with a durable machined die cast housing for dependable, long life expectancy. Rated torque for the standard model at 5 p/s is 8.5 oz.-in [60 mN-m]; Hi-Torque models are 10.4 oz.-in [73.4 mN-m].

Notes:
  • Voltages other than those shown as well as 2-phase bipolar windings maybe ordered.
  • Sleeve bearings are standard.

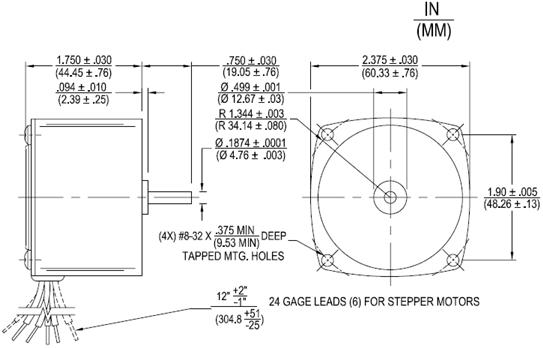

TS Direct Drive Drawings:
TS Direct Drive Diagrams:
TS Direct Drive Model Table:
Part Number Nom.
Voltage
(Vdc)		 Rated
Torque
@
200 p/s
(oz-in)		 Rated
Torque
@
200 p/s
(mN-m)		 Rated
Torque
@
4-5 p/s
(oz-in)		 Rated
Torque
@
4-5 p/s
(mN-m)		 Holding
Torque
(oz-in)
(2 Phase Energized)		 Holding
Torque
(mN-m)
(2 Phase Energized)		 Typical
Output
Speed
(RPM)		 Input
Power
(watts)		 Winding
Res.
(ohms)		 Rotor
Inertia
(oz-in2)		 Rotor
Inertia
(gm-cm2)		 Full
Load
Temp
Rise
(deg C)		 Weight
(oz)		 Weight
(g)
2605-002 6 3.6 25.4 8.5 60 14 98.9 250 8.5 9.5 .34 62.19 52 20 567
2610-0021 12 5.4 38.1 10.4 73.4 15.5 109.5 250 8.5 31 .34 62.19 40 20 567










Notes:
1 Hi-Torque Rotor Construction.
