Permanent Magnet DC Stepper Motor Family
Series TS Geared
Permanent Magnet DC Stepper TS Geared Specifications:
Step Angle: 7.5° & 15°
Torque Range: Up to 250 oz-in [1765 mN-m]
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Lead Wire: 6 leads 24AWG (approx. 12 inches [304.8 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Gear Unit: Zinc Die cast -  AGMA 7 Standards with hardened steel gears
Note:  Typical data subject to change without notification
Addtional Information:
Dependable TS series motors are used in many heavy-duty applications.

All gears are hobbed to AGMA 7 quality. Pinions are extruded from a special steel with a modified long addendum tooth form to provide higher strength. Pinions are held to the same AGMA 7 quality level as the gears. Both pinion and gear teeth are case hardened for wear resistance and rotate upon hardened and ground steel studs. Torque ratings up to 250 oz.-in [1765 mN-m].

Notes:
  • Sleeve bearings are standard.

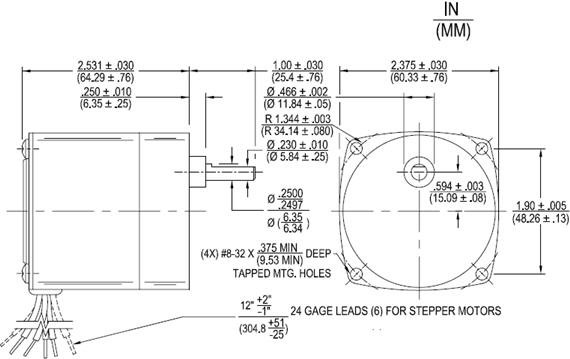

    • TS Geared Drawings:

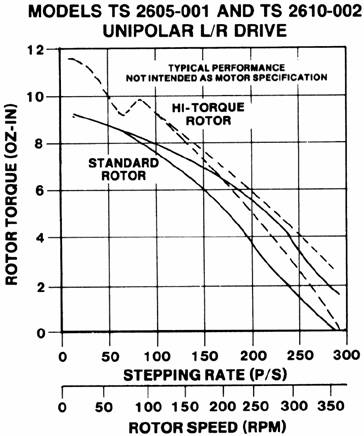

    TS Geared Diagrams:
    TS Geared Model Table:
    Add to cart Model Part Number Rated
    Torque
    @
    200 p/s
    (oz-in)    		 Rated
    Torque
    @
    200 p/s
    (mN-m)    		 Reduction Nominal
    Voltage
    (Vdc)    		 Step
    Angle
    (deg)    		 Steps
    Per
    Rev.    		 Typical
    Output
    Speed
    (RPM)    		 Input
    Power
    (watts)    		 Winding
    Res.
    (ohms)    		 Weight
    (oz)    		 Weight
    (g)
    		TS 2606-001 250 1765.4 300 12 .025 14400 .83 8.5 31 27 765.4
    		TS 2606-010 250 1765.4 300 6 .025 14400 .83 8.5 9.8 27 765.4
    		TS 2606-044 250 1765.4 300 24 .025 14400 .83 8.5 135 27 765.4
    		TS 2606-002 240 1694.8 150 12 .05 7200 1.67 8.5 31 27 765.4
    		TS 2606-042 233 1645.3 100 12 .075 4800 2.5 8.5 31 27 765.4
    		TS 2606-003 218 1539.4 75 12 .1 3600 3.3 8.5 31 27 765.4
    		TS 2606-012 175.5 1239.3 75 6 .1 3600 3.3 8.5 9.8 27 765.4
    		TS 2606-004 96.6 682.1 30 12 .25 1440 8.3 8.5 31 27 765.4
    		TS 2606-013 75.6 533.9 30 6 .1 3600 8.3 8.5 9.8 27 765.4
    		TS 2606-033 75.5 533.1 30 24 .25 1440 8.3 8.5 135 27 765.4
    		TS 2608-001 78 550.8 30 12 .25 1440 8.3 8.5 30 27 765.4
    		TS 2606-005 64.4 454.8 20 12 .375 960 12.5 8.5 31 27 765.4
    		TS 2606-006 40.25 284.2 12.5 12 .6 600 20 8.5 31 27 765.4
    		TS 2606-007 34.5 243.6 10 12 .75 480 25 8.5 31 27 765.4
    		TS 2606-008 14.4 101.7 4.17 12 1.8 200 60 8.5 31 27 765.4
    		TS 2606-045 14.4 101.7 4.17 24 1.8 200 60 8.5 135 27 765.4
    		TS 2606-009 6.9 48.7 2 12 3.75 96 125 8.5 31 27 765.4
