Permanent Magnet AC Synchronous Motor Family
Series 55mm Geared
Permanent Magnet AC Synchronous LYG55 Geared Specifications:
Frame Size: 55mm
Torque Range: Up to 200 oz-in [1412 mN-m]
Output Speed: 1 to 300 RPM
Standard Voltages: 115/230 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Gear Unit: Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearings: Sleeve/Ball (see Drawings Below)
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
LYG55 Geared Drawings:

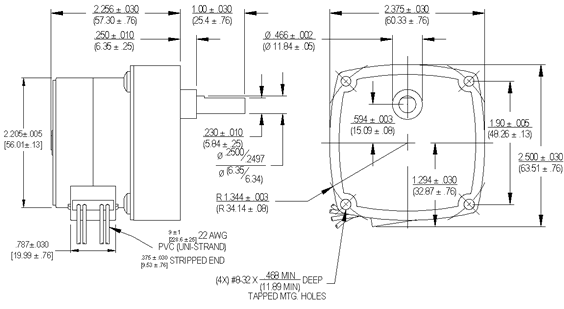

With Sleeve Bearing

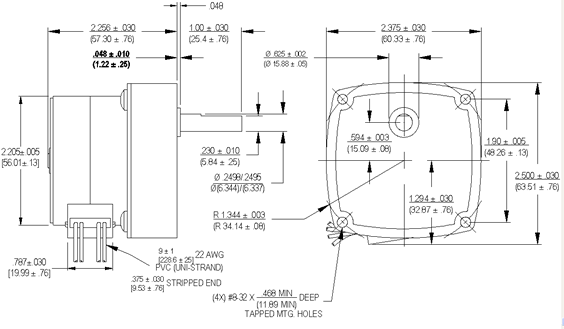

With Ball Bearing
LYG55 Geared Diagrams:
LYG55 Geared Model Table:
Add to cart Model Part Number Rated
Torque
@
60 Hz
(oz-in)		 Rated
Torque
@
60 Hz
(mN-m)		 Reduction Voltage
(Vac)
50/60 Hz		 Output
Speed
(RPM)
50 Hz		 Output
Speed
(RPM)
60 Hz		 Input
Power
(watts)		 Capacitor
Value
(mfd)
50/60 Hz		 Weight
(oz)		 Weight
(g)
Contact
Factory		 LYG55 LYG55T115FL97S 200 1412.3 600 115 .42 .5 5 .62/.5 18 510.3
LYG55 LYG55T115FL98S 200 1412.3 300 115 .83 1 5 .62/.5 18 510.3
LYG55 LYG55T024FL98S 200 1412.3 300 24 .83 1 5 15/12 18 510.3
LYG55 LYG55T230FL96S 200 1412.3 250 220/230/240 1 1.2 5 .15/.12 18 510.3
LYG55 LYG55T115EL90S 174 1228.7 150 115 1.67 2 5 .62/.5 18 510.3
LYG55 LYG55T024EL90S 174 1228.7 150 24 1.67 2 5 15/12 18 510.3
LYG55 LYG55T115EL82S 161 1136.9 100 115 2.5 3 5 .62/.5 18 510.3
LYG55 LYG55T024EL82S 161 1136.9 100 24 2.5 3 5 15/12 18 510.3
LYG55 LYG55T115EL76S 152 1073.4 75 115 3.3 4 5 .62/.5 18 510.3
LYG55 LYG55T024EL76S 152 1073.4 75 24 3.3 4 5 15/12 18 510.3
LYG55 LYG55T230EL72S 152 1073.4 62.5 220/230/240 4 4.8 5 .15/.12 18 510.3
LYG55 LYG55T115FL70S 145 1023.9 60 115 4.17 5 5 .62/.5 18 510.3
LYG55 LYG55T115FL64S 140 988.6 50 115 5 6 5 .62/.5 18 510.3
LYG55 LYG55T230FL62S 140 988.6 41.67 220/230/240 6 7.2 5 .15/.12 18 510.3
LYG55 LYG55T024FL64S 140 988.6 50 24 5 6 5 15/12 18 510.3
LYG55 LYG55T115FL62S 140 988.6 41.67 115 6 7.2 5 .62/.5 18 510.3
LYG55 LYG55T024FL62S 140 988.6 41.67 24 6 7.2 5 15/12 18 510.3
LYG55 LYG55T230FL64S 140 988.6 50 220/230/240 5 6 5 .15/.12 18 510.3
LYG55 LYG55T115FL52S 126 889.8 30 115 8.3 10 5 .62/.5 18 510.3
LYG55 LYG55T024FL52S 126 889.8 30 24 8.3 10 5 15/12 18 510.3
LYG55 LYG55T024FL50S 105 741.5 25 24 10 12 5 15/12 18 510.3
LYG55 LYG55T115FL50S 105 741.5 25 115 10 12 5 .62/.5 18 510.3
LYG55 LYG55T115EL30S 45 317.8 10 115 25 30 5 .62/.5 18 510.3
LYG55 LYG55T115EL28S 35 247.2 8.3 115 30 36 5 .62/.5 18 510.3
LYG55 LYG55T115EL20S 22.5 158.9 5 115 50 60 5 .62/.5 18 510.3
LYG55 LYG55T024EL20S 22.5 158.9 5 24 50 60 5 15/12 18 510.3
LYG55 LYG55T024EL18S 17.5 123.6 4.17 24 60 72 5 15/12 18 510.3
LYG55 LYG55T115EL18S 17.5 123.6 4.17 115 60 72 5 .62/.5 18 510.3
LYG55 LYG55T115EL08S 11 77.7 2.5 115 100 120 5 .62/.5 18 510.3
LYG55 LYG55T024FS52S 160 1129.8 30 24 8.3 10 7 20/15 18 510.3
LYG55 LYG55T115ES30S 64 451.9 10 115 25 30 7 .85/.68 18 510.3
LYG55 LYG55T024ES30S 64 451.9 10 24 25 30 7 20/15 18 510.3
LYG55 LYG55T024ES28S 53 374.3 8.3 24 30 36 7 20/15 18 510.3
LYG55 LYG55T230ES30S 64 451.9 10 220/230/240 25 30 7 .22/.18 18 510.3
LYG55 LYG55T115ES20S 32 226 5 115 50 60 7 .85/.68 18 510.3
LYG55 LYG55T115ES08S 16 113 2.5 115 100 120 7 .85/.68 18 510.3
