Hurst - Permanent Magnet DC Stepper Motor Family

Stepping Motor Family
Hurst has over 50 years of experience in the design and manufacture of high quality stepper motors. Combining can-stack construction techniques with its permanent magnet expertise, Hurst is able to provide a broad offering of cost effective stepper products. Standard and custom designs are available in step angles from 7.5 to 18 degrees. Unlike its competition, Hurst manufactures its own high quality gear boxes to provide superior performance in any motion control application requiring a stepper motor.

  • 5-24 Vdc Motor
  • 35mm Size
  • 7.5 deg. Step angle

  • 5-24 Vdc Motor
  • 35mm Size
  • Up to 150 oz-in of torque
  • 7.5 deg. Step angle
  • Up to 300 Reduction for geared motors

  • 5-24 Vdc Motor
  • 42mm Size
  • 7.5 deg. Step angle

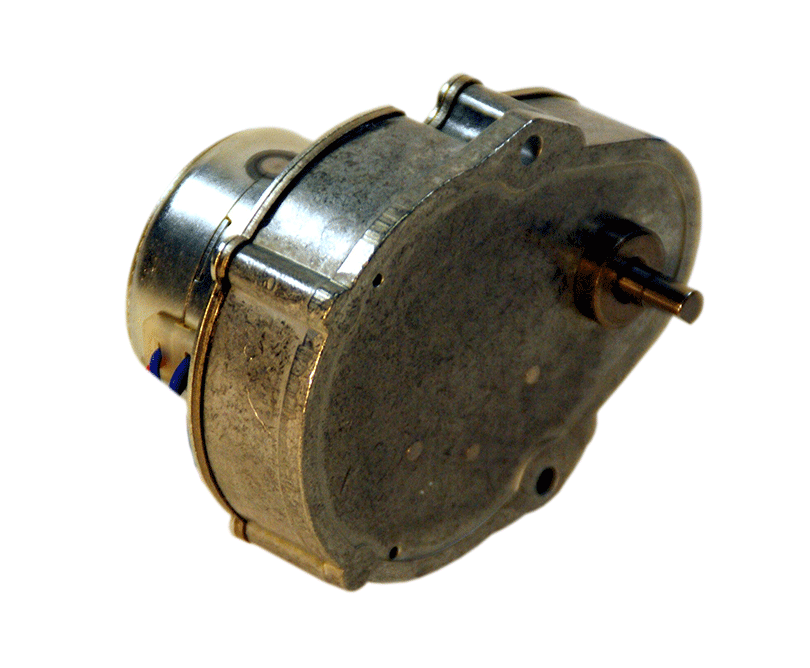

  • 5-24 Vdc Motor
  • 42mm Size
  • Up to 150 oz-in of torque
  • 7.5 deg. Step angle
  • Up to 300 Reduction for geared motors

  • 5-24 Vdc Motor
  • 7.5 deg. or 15 deg. Step angle
  • 49mm Size

  • 5-24 Vdc Motor
  • Up to 150 oz-in of torque
  • 7.5 deg. or 15 deg. Step angle
  • 49mm Size
  • Up to 300 Reduction for geared motors
_
  • 5-24 Vdc Motor
  • 55mm Size
  • 7.5 deg. Step angle

  • 5-24 Vdc Motor
  • 55mm Size
  • Up to 200 oz-in of torque
  • 7.5 deg. Step angle
  • Up to 600 Reduction for geared motors

  • 5-24 Vdc Motor
  • 59mm Size
  • 7.5 deg. or 15 deg. Step angle

  • 5-24 Vdc Motor
  • 59mm Size
  • Up to 200 oz-in of torque
  • 7.5 deg. or 15 deg. Step angle
  • Up to 300 Reduction for geared motors

Discontinued Motor
 for reference only
  • 6-24 Vdc Motor
  • Size 24
  • 7.5 deg. Step angle
Discontinued Motor
 for reference only
  • 6-24 Vdc Motor
  • Size 24
  • Up to 250 oz-in of torque
  • 7.5 deg. Step angle
  • Up to 300 Reduction for geared motors
Discontinued Motor
 for reference only
  • 6-24 Vdc Motor
  • Up to 29 oz-in of torque
  • 7.5 deg. or 15 deg. Step angle
  • Double-ended shaft availability
Discontinued Motor Replaced by LSD55
 for reference only

  • 5-24 Vdc Motor
  • 57mm Size
  • 7.5 deg. or 15 deg. Step angle
Discontinued Motor Replaced by LSG55
 for reference only

  • 5-24 Vdc Motor
  • 57mm Size
  • Up to 200 oz-in of torque
  • 7.5 deg. or 15 deg. Step angle
  • Up to 300 Reduction for geared motors
Discontinued Motor Replaced by LYD55
 for reference only

  • 5-24 Vdc Motor
  • 57mm Size
  • 7.5 deg. Step angle
  • Up to 16.5 oz-in of torque
Discontinued Motor
 for reference only

  • 5-24 Vdc Motor
  • 18 deg. Step angle
  • 22mm Size
  • 1.1 oz-in holding torque / 1.19 gm/cm2 rotor inertia
